Smart views

Smart Views let you replace the default table view with any UI you can code. Display orders on a map, events in a calendar, pictures in a gallery, all powered by your real data and integrated with Forest actions.

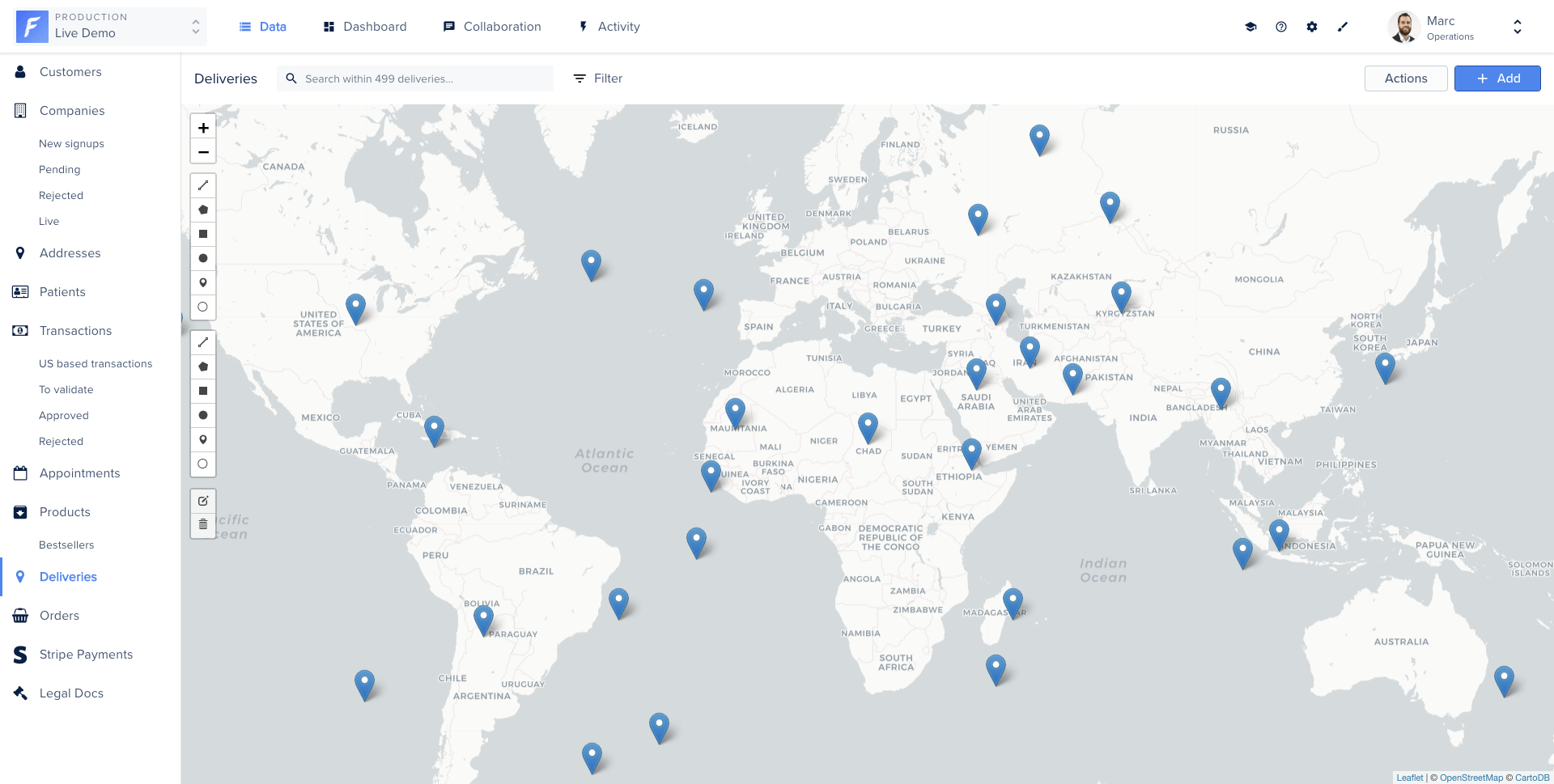

Map Smart View on a collection — A map-based Smart View replacing the default table view

What is a smart view?

A Smart View is a Glimmer Component composed of three files: a JavaScript component, an HTML/Handlebars template, and a CSS stylesheet. Forest hosts and runs this code directly in your back-office.

You don’t need to know Ember.js to write a Smart View. The examples below cover all the patterns you’ll need. For advanced use, refer to the Glimmer Component and Handlebars Template documentation.

Your code must be compatible with Ember 4.12.

Creating a smart view

Forest provides an online editor to write your Smart View code. Access it from the collection’s Settings, then the Smart Views tab.

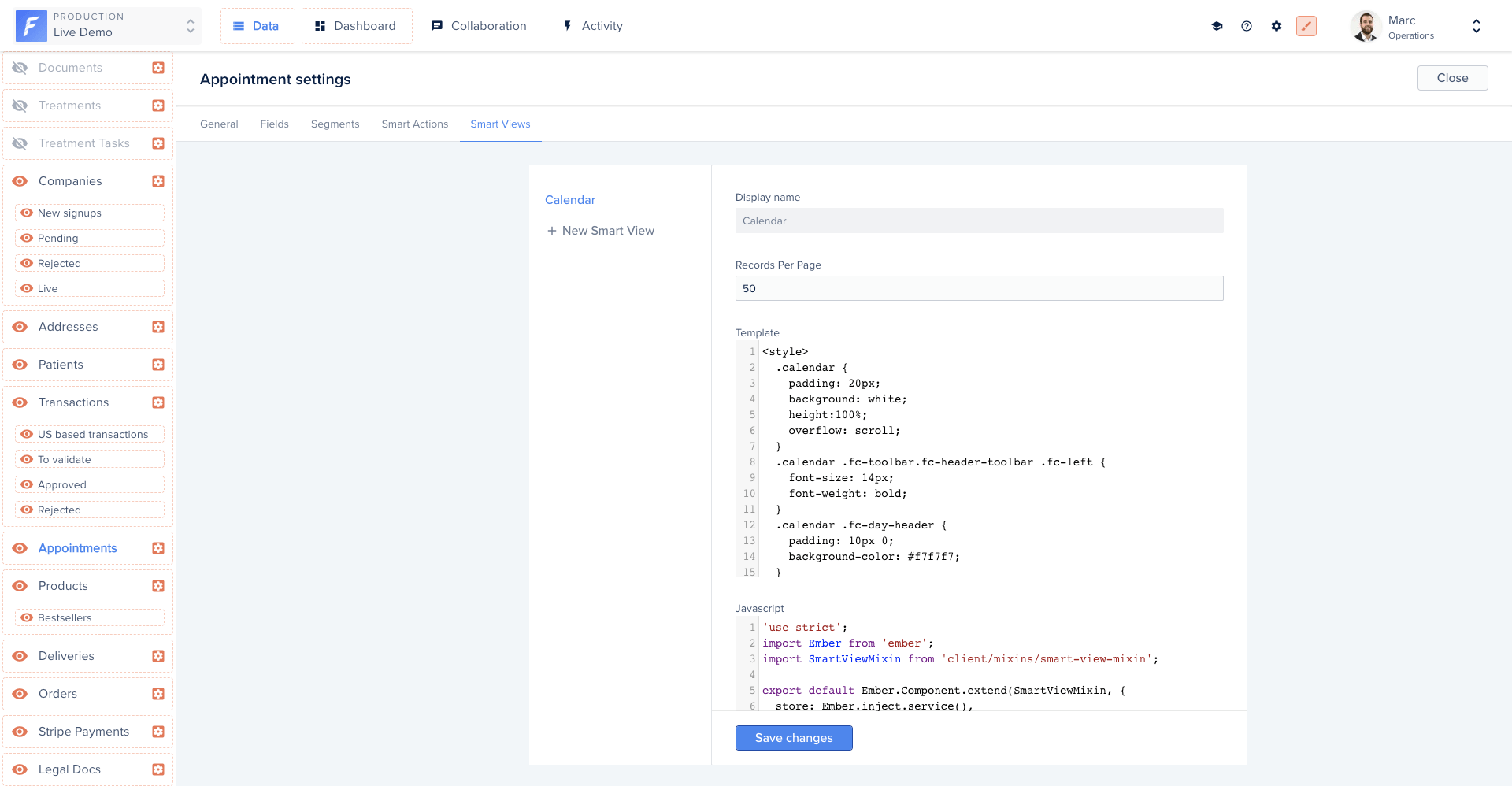

The Smart View code editor, template, component, and style tabs

Available properties

Forest automatically injects the following properties into your Smart View:

Property	Type	Description
`collection`	Model	The current collection
`currentPage`	Number	The current page
`isLoading`	Boolean	Indicates if the UI is currently loading records
`numberOfPages`	Number	The total number of available pages
`records`	Array	Your data entries
`searchValue`	String	The current search value

Available actions

Forest also injects the following actions:

Action	Description
`deleteRecords(records)`	Delete one or multiple records
`triggerSmartAction(collection, actionName, record)`	Trigger an action defined on the specified collection on a record

Working with records

Iterating over records

Access all records from the @records property and iterate in your template:

{{#each @records as |record|}}
{{/each}}

Accessing field values

Access field values using the forest- prefix before the field name:

{{#each @records as |record|}}
  <p>Status: {{record.forest-shipping_status}}</p>
{{/each}}

Accessing belongsTo relationships

Accessing a belongsTo relationship works the same as a field. Forest automatically fetches the related data via API when needed:

{{#each @records as |record|}}
  <h2>
    Order to
    {{record.forest-customer.forest-firstname}}
    {{record.forest-customer.forest-lastname}}
  </h2>
{{/each}}

Accessing hasMany relationships

Same behavior applies for hasMany relationships:

{{#each @records as |record|}}
  {{#each record.forest-comments as |comment|}}
    <p>{{comment.forest-text}}</p>
  {{/each}}
{{/each}}

Refreshing records

Call @fetchRecords to reload the current page of records:

<button {{on 'click' @fetchRecords}}>
  Refresh
</button>

Fetching records with custom filters

Use the store service to query any collection with custom filters. In the example below, a calendar view fetches appointments within a date range:

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { tracked } from '@glimmer/tracking';

export default class extends Component {
  @service store;
  @tracked appointments;

  async fetchData(startDate, endDate) {
    const params = {
      filters: JSON.stringify({
        aggregator: 'And',
        conditions: [
          { field: 'start_date', operator: 'GreaterThan', value: startDate },
          { field: 'start_date', operator: 'LessThan', value: endDate },
        ],
      }),
      timezone: 'America/Los_Angeles',
      'page[number]': 1,
      'page[size]': 50,
    };

    this.appointments = await this.store.query('forest_appointment', params);
  }
}

template.hbs

{{#each this.appointments as |appointment|}}
  <p>{{appointment.id}}</p>
  <p>{{appointment.forest-name}}</p>
{{/each}}

Query parameters

Parameter	Type	Description
`filters`	Object	A stringified JSON object. A single filter uses `{ field, operator, value }`. An aggregation uses `{ aggregator: "and"/"or", conditions: [...] }`. Operators: `less_than`, `greater_than`, `equal`, `after`, `before`, `contains`, `starts_with`, `ends_with`, `not_contains`, `present`, `not_equal`, `blank`
`timezone`	String	Timezone string, e.g. `America/Los_Angeles`
`page[number]`	Number	Page number to fetch
`page[size]`	Number	Number of records per page

Deleting records

The deleteRecords action deletes one or multiple records. A confirmation dialog is shown automatically.

template.hbs

{{#each @records as |record|}}
  <Button::BetaButton
    @type='danger'
    @text='Delete record'
    @action={{fn this.deleteRecords record}}
    @async={{false}}
  />
{{/each}}

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

Triggering actions

Action triggering inside the Smart View editor may not work correctly, as not all context is available. Test action execution from the Smart View applied to the collection view.

Use triggerSmartAction to invoke an action directly from your Smart View.

template.hbs

<Button::BetaButton
  @type='primary'
  @text='Reschedule appointment'
  @action={{fn this.triggerSmartAction @collection 'Reschedule' record}}
/>

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

The triggerSmartAction function signature:

function triggerSmartAction(
  context,
  collection,
  actionName,
  records,
  callback = () => {},
  values = null,
)

Argument	Description
`context`	Reference to the component, use `this`
`collection`	The collection where the action is defined
`actionName`	The action name
`records`	An array of records or a single record
`callback`	Function executed after the action completes, receives the action result as its only parameter
`values`	Object containing values to pre-fill the action form fields

To pass values programmatically and skip the action form:

template.hbs

<Button::BetaButton
  @type='primary'
  @text='Reschedule appointment'
  @action={{fn this.rescheduleToNewTime record}}
/>

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';
import { tracked } from '@glimmer/tracking';

export default class extends Component {
  @tracked newTime = '11:00';

  @action
  triggerSmartAction(actionName, records, values) {
    return triggerSmartAction(
      this,
      this.args.collection,
      actionName,
      records,
      () => {},
      values,
    );
  }

  @action
  rescheduleToNewTime(record) {
    this.triggerSmartAction('Reschedule', record, { newTime: this.newTime });
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

Applying a smart view

To activate a Smart View on a collection:

Enable the Layout Editor mode (top navigation bar)
Click the view type button (table icon)
Drag and drop your Smart View to the first position in the dropdown

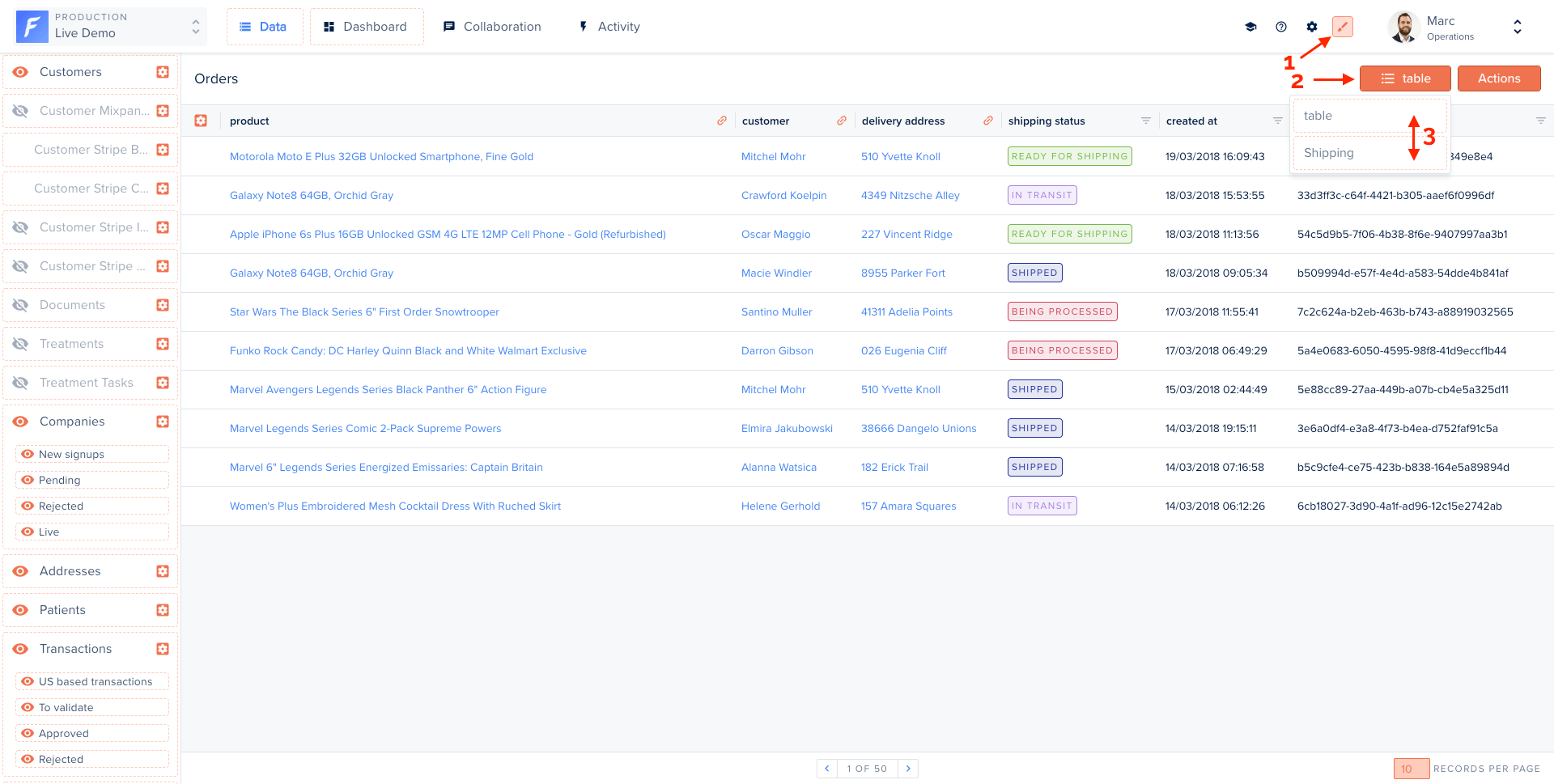

Reordering Smart Views in Layout Editor — Reordering views in Layout Editor mode to apply a Smart View

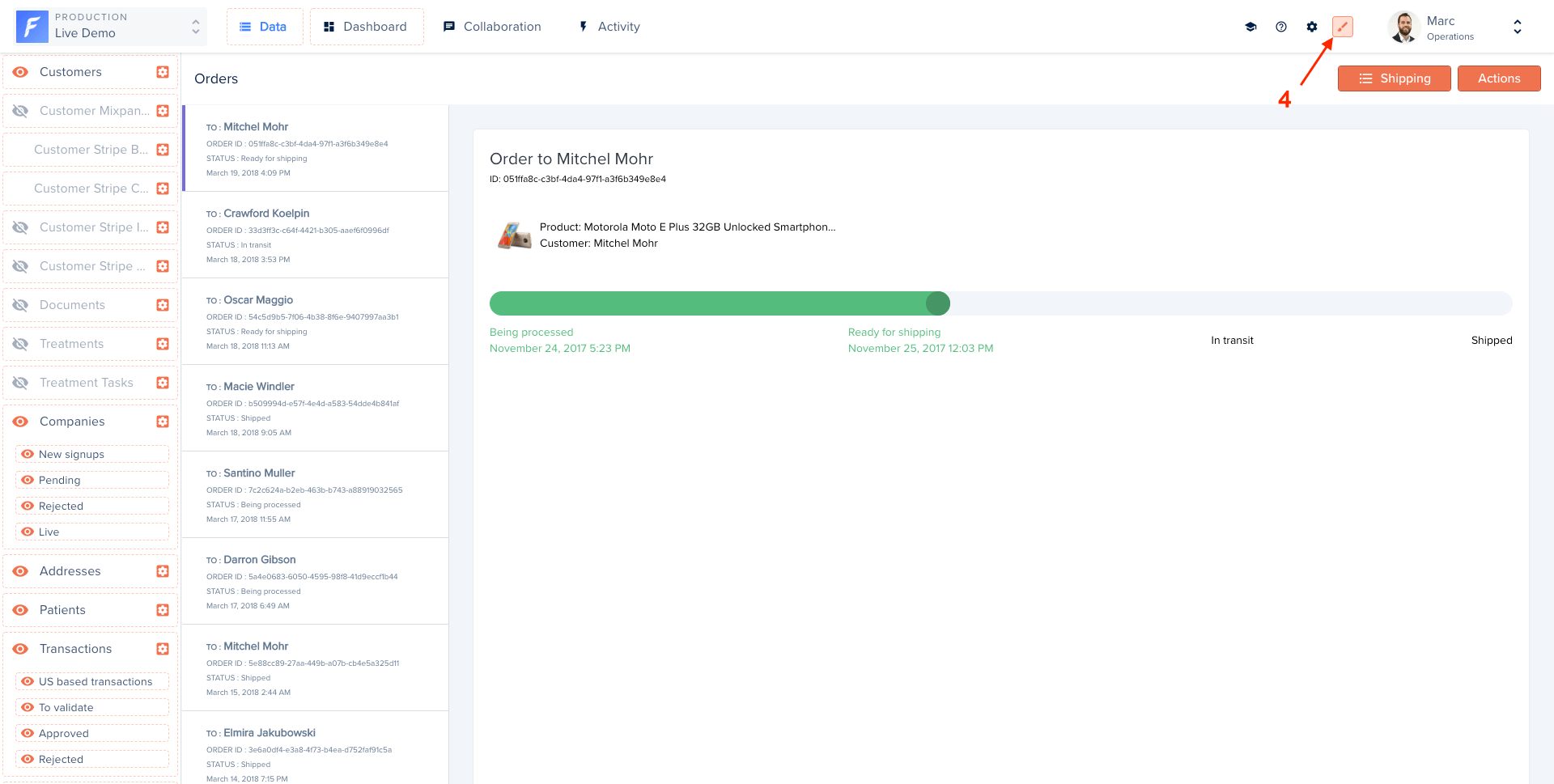

Layout Editor toggle in the top navigation — Enabling Layout Editor mode from the top navigation bar

The view refreshes automatically. Disable Layout Editor mode when done.

Once a Smart View is applied to a collection, it also appears in related data panels and summary views. It is not currently possible to set different views for the table, summary, and related data contexts independently.

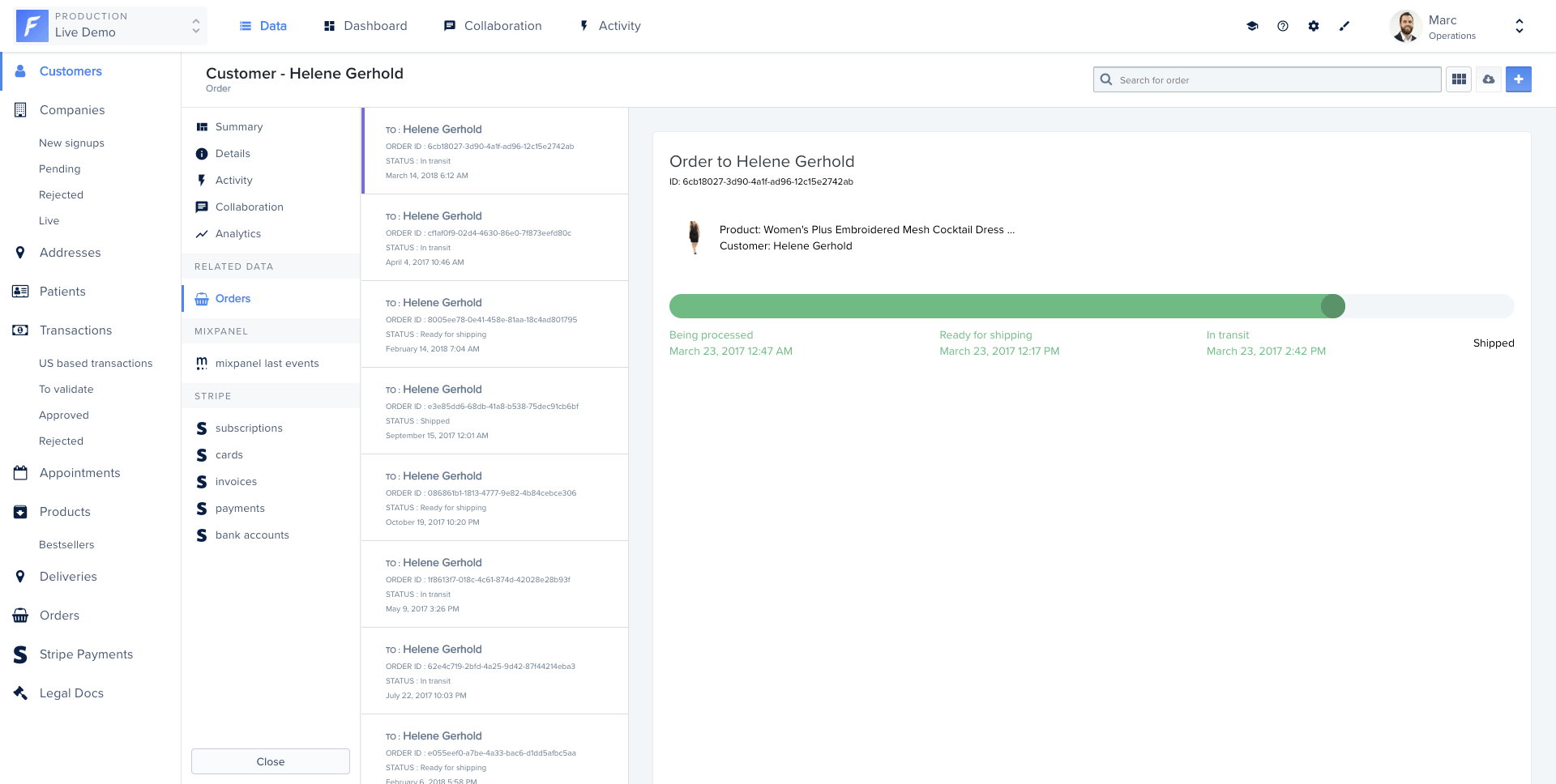

Smart View in a Related Data panel — A Smart View also appears in Related Data panels

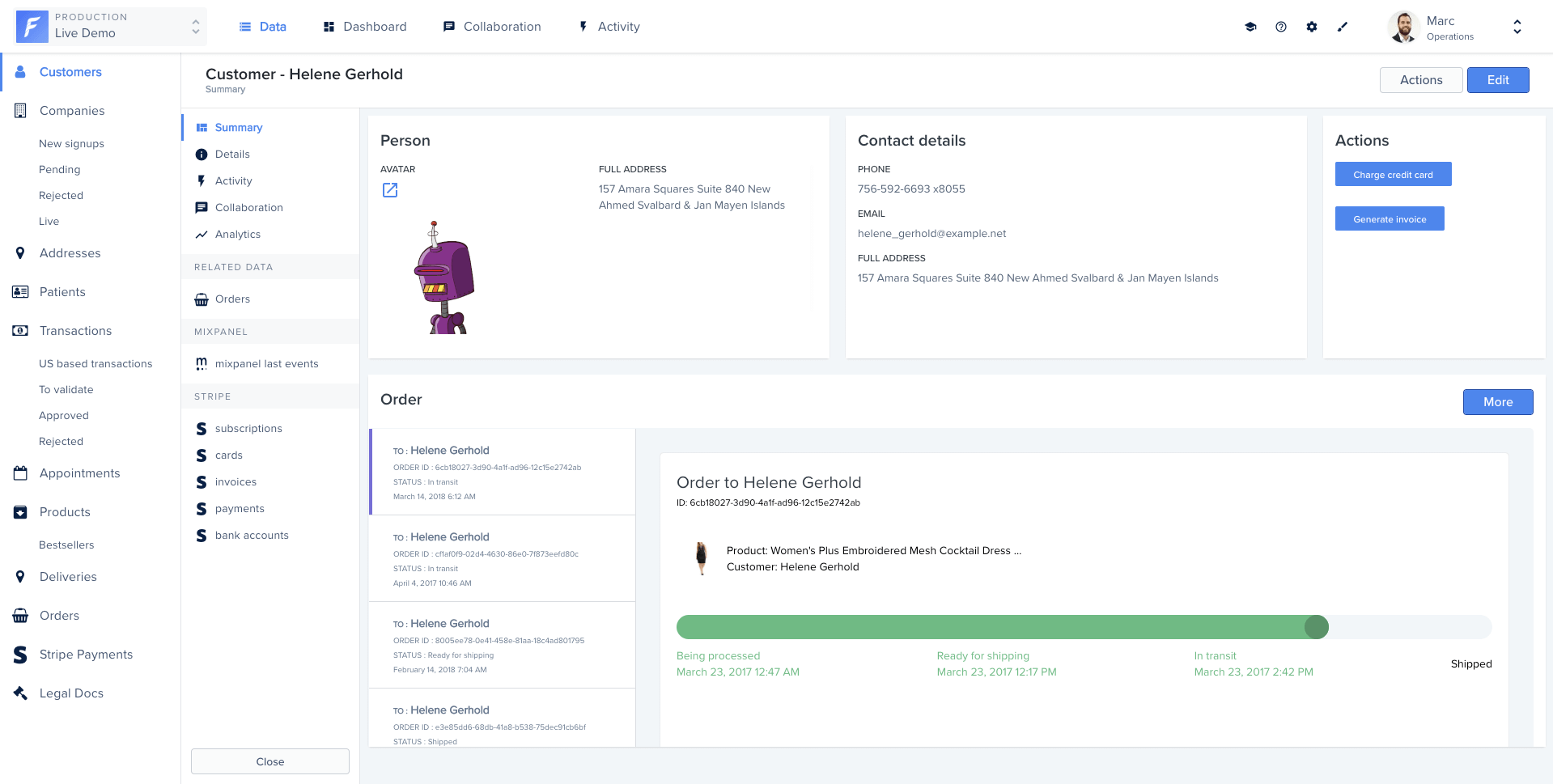

Smart View in a Summary View — A Smart View also appears in Summary Views

Examples

Calendar view

Displays collection records on a calendar using FullCalendar. The component loads the library from CDN and uses date-range conditions to fetch relevant records.

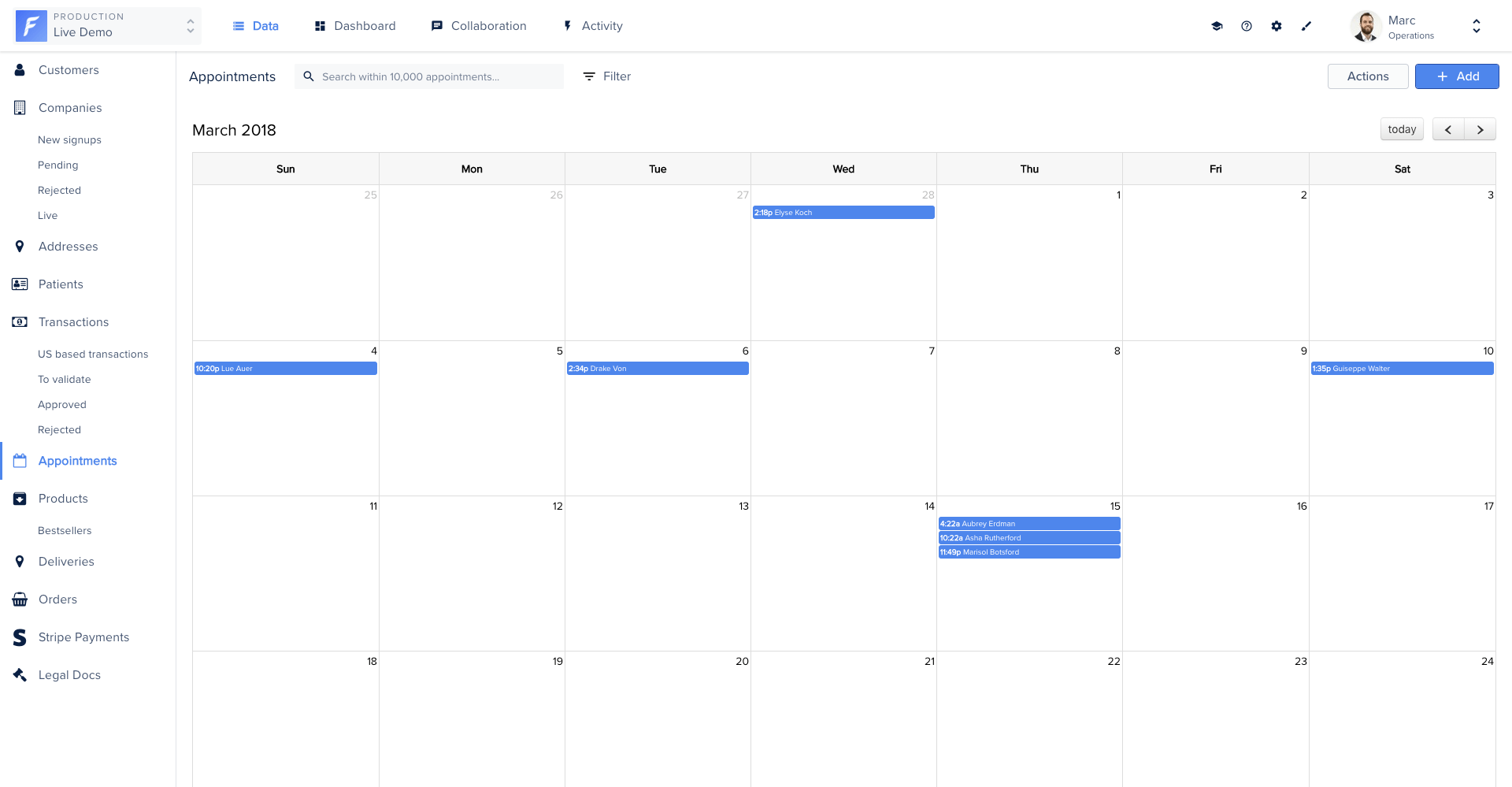

Calendar Smart View built with FullCalendar

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { guidFor } from '@ember/object/internals';
import {
  triggerSmartAction,
  deleteRecords,
  loadExternalStyle,
  loadExternalJavascript,
} from 'client/utils/smart-view-utils';

export default class extends Component {
  @service() router;
  @service() store;

  @tracked conditionAfter = null;
  @tracked conditionBefore = null;
  @tracked loaded = false;

  constructor(...args) {
    super(...args);
    this.loadPlugin();
  }

  get calendarId() {
    return `${guidFor(this)}-calendar`;
  }

  async loadPlugin() {
    loadExternalStyle(
      'https://cdn.jsdelivr.net/npm/fullcalendar@6.1.8/index.global.min.css',
    );
    await loadExternalJavascript(
      'https://cdn.jsdelivr.net/npm/fullcalendar@6.1.8/index.global.min.js',
    );
    this.loaded = true;
    this.onInsert();
  }

  @action
  onInsert() {
    if (!this.loaded || !document.getElementById(this.calendarId)) return;

    this.calendar = new FullCalendar.Calendar(
      document.getElementById(this.calendarId),
      {
        allDaySlot: false,
        minTime: '00:00:00',
        initialDate: new Date(2018, 2, 1),
        eventClick: ({ event }) => {
          this.router.transitionTo(
            'project.rendering.data.collection.list.view-edit.details',
            this.args.collection.id,
            event.id,
          );
        },
        events: async (info, successCallback) => {
          const field = this.args.collection.fields.findBy('fieldName', 'start_date');

          if (this.conditionAfter) {
            this.args.removeCondition(this.conditionAfter, true);
            this.conditionAfter.unloadRecord();
          }
          if (this.conditionBefore) {
            this.args.removeCondition(this.conditionBefore, true);
            this.conditionBefore.unloadRecord();
          }

          const conditionAfter = this.store.createFragment('fragment-condition');
          conditionAfter.set('field', field);
          conditionAfter.set('operator', 'is after');
          conditionAfter.set('value', info.start);
          conditionAfter.set('smartView', this.args.viewList);
          this.conditionAfter = conditionAfter;

          const conditionBefore = this.store.createFragment('fragment-condition');
          conditionBefore.set('field', field);
          conditionBefore.set('operator', 'is before');
          conditionBefore.set('value', info.end);
          conditionBefore.set('smartView', this.args.viewList);
          this.conditionBefore = conditionBefore;

          this.args.addCondition(conditionAfter, true);
          this.args.addCondition(conditionBefore, true);

          await this.args.fetchRecords({ page: 1 });

          successCallback(
            this.args.records?.map(appointment => ({
              id: appointment.get('id'),
              title: appointment.get('forest-name'),
              start: appointment.get('forest-start_date'),
              end: appointment.get('forest-end_date'),
            })),
          );
        },
      },
    );

    this.calendar.render();
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.calendar {
  padding: 20px;
  background: var(--color-beta-surface);
  height: 100%;
  overflow: scroll;
}
.calendar .fc-day-header {
  padding: 10px 0;
  background-color: var(--color-beta-secondary);
  color: var(--color-beta-on-secondary_dark);
}
.calendar .fc-event {
  background-color: var(--color-beta-secondary);
  border: 1px solid var(--color-beta-on-secondary_border);
  color: var(--color-beta-on-secondary_medium);
  font-size: 14px;
}
.c-smart-view {
  display: flex;
  white-space: normal;
  position: absolute;
  bottom: 0;
  left: 0;
  right: 0;
  top: 0;
  background-color: var(--color-beta-surface);
}

template.hbs

<div id="{{this.calendarId}}" class="calendar" {{did-insert this.onInsert}}></div>

Map view

Displays geo-located records on an interactive map using Leaflet. Clicking a marker opens the corresponding record. New records can be created by placing a marker.

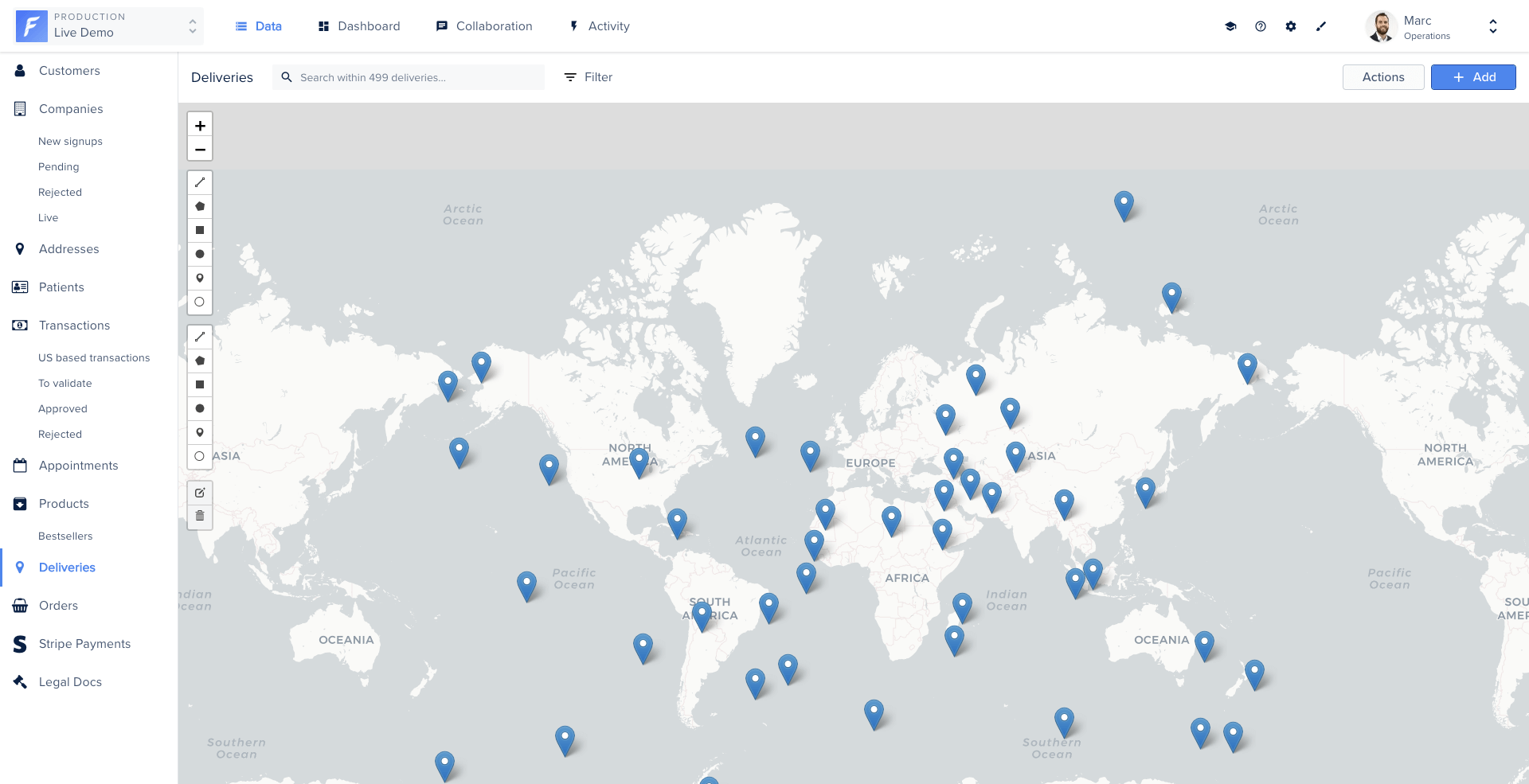

Delivery map Smart View built with Leaflet

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { guidFor } from '@ember/object/internals';
import {
  triggerSmartAction,
  deleteRecords,
  loadExternalStyle,
  loadExternalJavascript,
} from 'client/utils/smart-view-utils';

export default class extends Component {
  @service router;
  @service store;

  @tracked map = null;
  @tracked loaded = false;

  constructor(...args) {
    super(...args);
    this.loadPlugin();
  }

  get mapId() {
    return `map-${guidFor(this)}`;
  }

  async loadPlugin() {
    loadExternalStyle('//cdnjs.cloudflare.com/ajax/libs/leaflet/1.3.4/leaflet.css');
    loadExternalStyle('//cdnjs.cloudflare.com/ajax/libs/leaflet.draw/1.0.4/leaflet.draw.css');
    await loadExternalJavascript('//cdnjs.cloudflare.com/ajax/libs/leaflet/1.3.4/leaflet.js');
    await loadExternalJavascript('//cdnjs.cloudflare.com/ajax/libs/leaflet.draw/1.0.4/leaflet.draw.js');
    this.loaded = true;
    this.displayMap();
  }

  @action
  displayMap() {
    if (!this.loaded) return;

    if (this.map) {
      this.map.off();
      this.map.remove();
      this.map = null;
    }

    const markers = [];
    this.args.records?.forEach(record => {
      markers.push([record.get('forest-lat'), record.get('forest-lng'), record.get('id')]);
    });

    this.map = new L.Map(this.mapId);

    const osmUrl = 'https://cartodb-basemaps-{s}.global.ssl.fastly.net/light_all/{z}/{x}/{y}.png';
    const osmAttrib = '&copy; <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a> &copy; <a href="http://cartodb.com/attributions">CartoDB</a>';
    const osm = new L.TileLayer(osmUrl, { attribution: osmAttrib });
    const drawnItems = new L.FeatureGroup();
    this.map.addLayer(drawnItems);

    const drawControl = new L.Control.Draw({
      draw: { polygon: false, polyline: false, rectangle: false, circle: false, circlemarker: false, marker: true },
      edit: { featureGroup: drawnItems },
    });

    this.map.setView(new L.LatLng(48.8566, 2.3522), 2);
    this.map.addLayer(osm);
    this.map.addControl(drawControl);

    this.map.on(L.Draw.Event.CREATED, event => {
      const { layer, layerType: type } = event;
      if (type === 'marker') {
        const coordinates = event.layer.getLatLng();
        const newRecord = this.store.createRecord('forest_delivery', {
          'forest-is_delivered': false,
          'forest-lng': coordinates.lng,
          'forest-lat': coordinates.lat,
        });
        newRecord.save().then(savedRecord => {
          layer.on('click', () => {
            this.router.transitionTo(
              'project.rendering.data.collection.list.view-edit.details',
              this.args.collection.id,
              savedRecord.id,
            );
          });
        });
      }
      this.map.addLayer(layer);
    });

    markers.forEach(([lat, lng, id]) => {
      const marker = L.marker([parseFloat(lat), parseFloat(lng)]).addTo(this.map);
      marker.on('click', () => {
        this.router.transitionTo(
          'project.rendering.data.collection.list.view-edit.details',
          this.args.collection.id,
          id,
        );
      });
    });
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.c-map {
  width: 100%;
  height: 100%;
  z-index: 4;
}
.c-smart-view {
  display: flex;
  white-space: normal;
  position: absolute;
  bottom: 0;
  left: 0;
  right: 0;
  top: 0;
  background-color: var(--color-beta-surface);
}

template.hbs

<div
  id={{this.mapId}}
  class='c-map'
  {{did-insert this.displayMap}}
  {{did-update this.displayMap @records}}
></div>

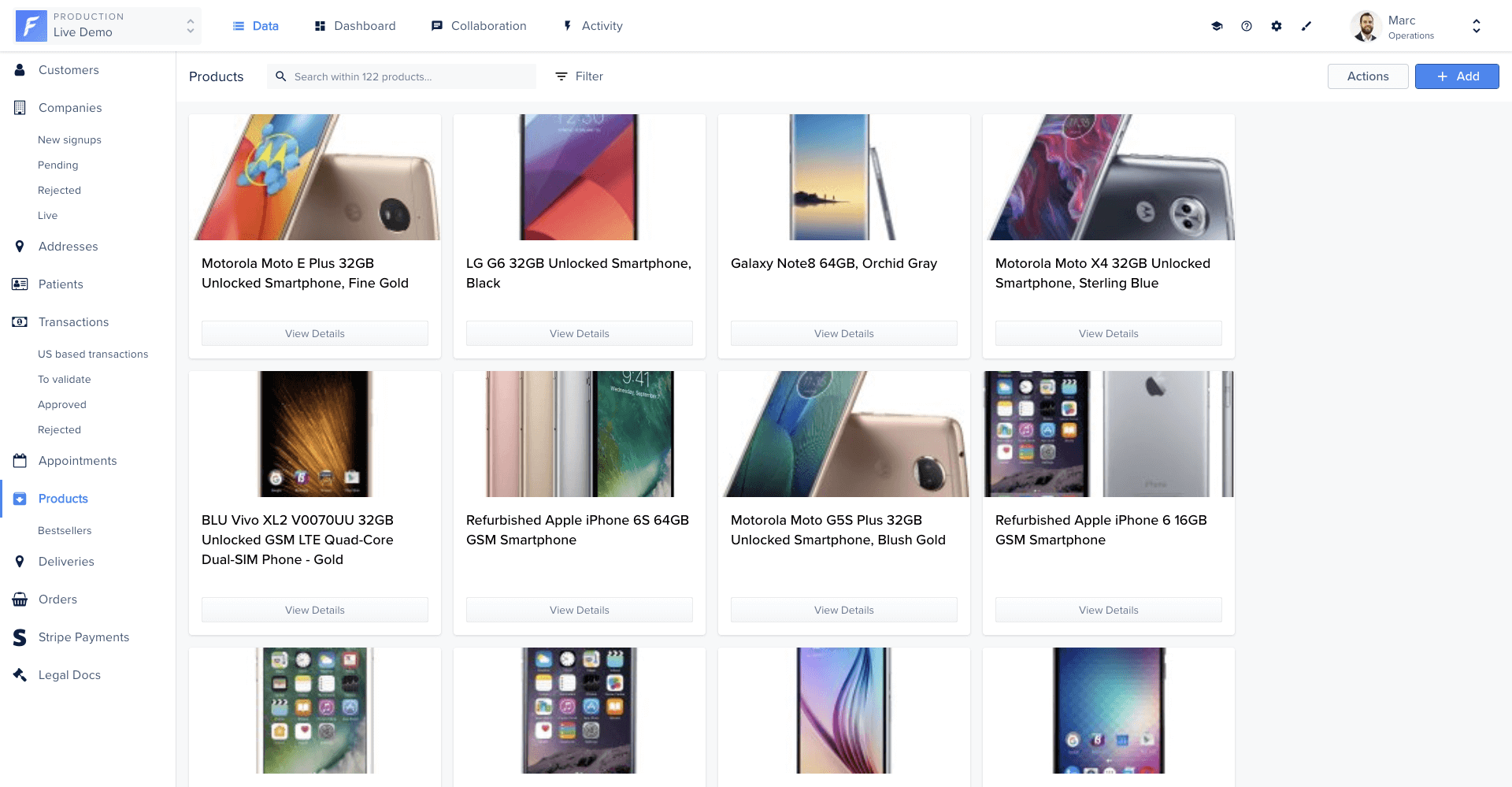

Gallery view

Displays records as a grid of images. Each image links to the corresponding record’s detail page.

Gallery Smart View showing records as a grid of images

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.l-gallery-view-container {
  flex-grow: 1;
  width: 100%;
  height: 100%;
  overflow: hidden;
  position: relative;
}
.c-gallery {
  padding: 15px;
  overflow-y: auto;
  width: 100%;
  position: absolute;
  left: 0;
  top: 0;
  bottom: 40px;
}
.c-gallery__image {
  height: 182px;
  width: 182px;
  margin: 3px;
  border: 1px solid var(--color-beta-on-surface_border);
  border-radius: 3px;
  transition: all 0.3s ease-out;
}
.c-gallery__image:hover {
  transform: scale(1.05);
}

template.hbs

<div class='l-gallery-view-container'>
  <section class='c-gallery'>
    {{#each @records as |record|}}
      <LinkTo
        @route='project.rendering.data.collection.list.view-edit.details'
        @models={{array @collection.id record.id}}
        class='c-gallery__image-container'
      >
        <img class='c-gallery__image' src={{record.forest-picture}} />
      </LinkTo>
    {{/each}}
  </section>

  <Table::TableFooter
    @collection={{@collection}}
    @viewList={{@viewList}}
    @records={{@records}}
    @currentPage={{@currentPage}}
    @numberOfPages={{@numberOfPages}}
    @recordsCount={{@recordsCount}}
    @isLoading={{@isLoading}}
    @fetchRecords={{@fetchRecords}}
  />
</div>

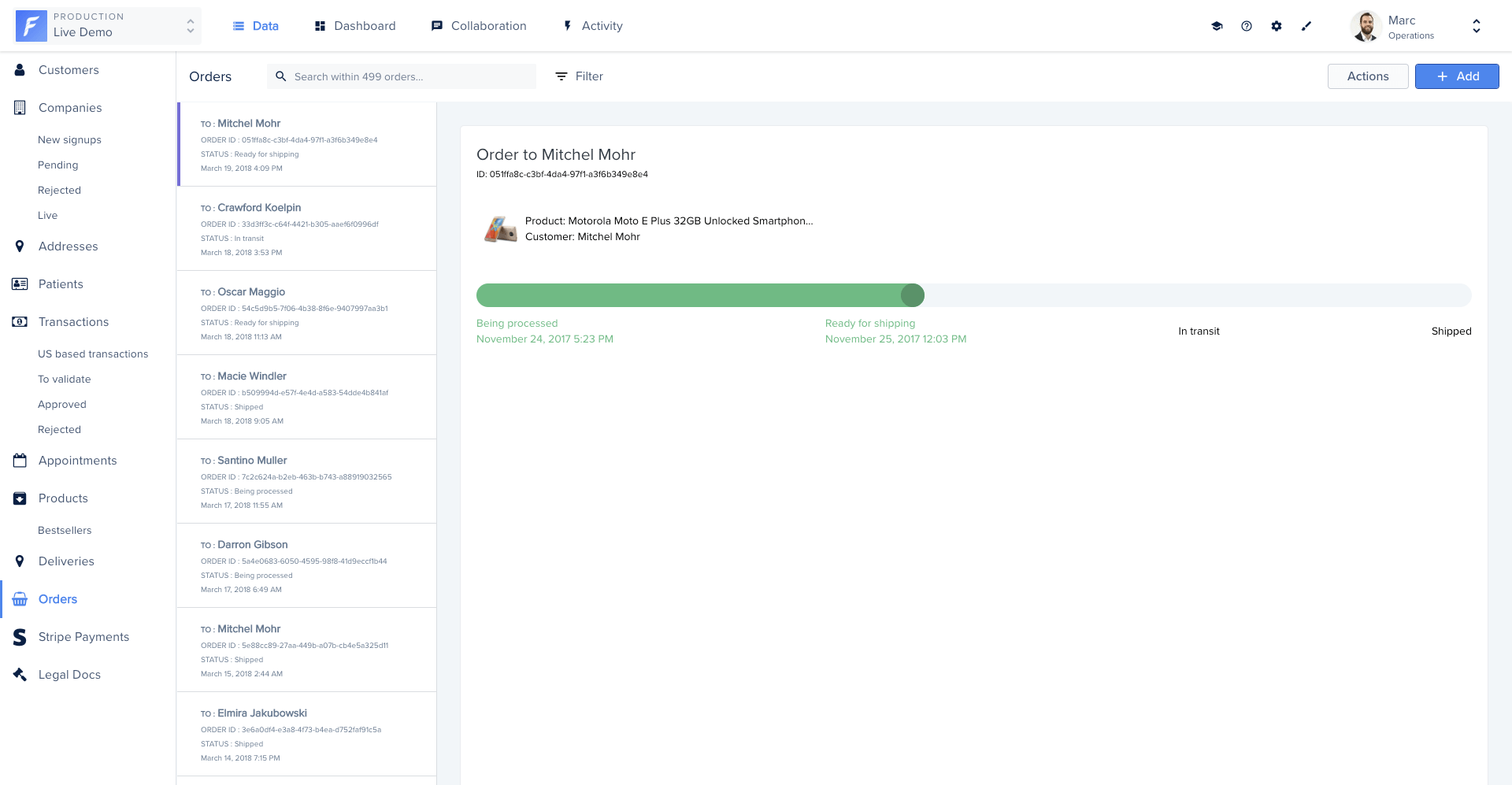

Shipping status view

Displays a master-detail layout: a scrollable list of orders on the left and a progress bar card on the right showing the shipping status of the selected order.

Shipping status Smart View, master-detail layout with a progress bar

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @tracked currentRecord = null;

  get status() {
    switch (this.currentRecord?.get('forest-shipping_status')) {
      case 'Being processed': return 'one';
      case 'Ready for shipping': return 'two';
      case 'In transit': return 'three';
      case 'Shipped': return 'four';
      default: return null;
    }
  }

  @action
  setDefaultCurrentRecord() {
    if (!this.currentRecord) {
      this.currentRecord = this.args.records.firstObject;
    }
  }

  @action
  selectRecord(record) {
    this.currentRecord = record;
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

template.hbs

<div class='wrapper-view' {{did-insert this.setDefaultCurrentRecord}}>
  <div class='wrapper-list'>
    {{#each @records as |record|}}
      <a href='#' {{on 'click' (fn this.selectRecord record)}}>
        <div class='list--item {{if (eq this.currentRecord record) "selected"}}'>
          <div class='list--item__values-left'>
            <h3><span>to:</span>
              {{record.forest-customer.forest-firstname}}
              {{record.forest-customer.forest-lastname}}</h3>
            <p><span>order ID</span>: {{record.id}}</p>
            <p><span>status</span>: {{record.forest-shipping_status}}</p>
          </div>
        </div>
      </a>
    {{/each}}
  </div>
  <div class='wrapper-card'>
    <div class='card--title'>
      <h2>Order to
        {{this.currentRecord.forest-customer.forest-firstname}}
        {{this.currentRecord.forest-customer.forest-lastname}}</h2>
      <small>ID: {{this.currentRecord.id}}</small>
    </div>
    <div class='gaugebar--bar'>
      <div class='gaugebar--bar__active {{this.status}}'></div>
    </div>
  </div>
</div>

Overview

Connect

Process

Build

Execute

Collaborate

Manage

Embed

Control

Project Settings

What is a smart view?

Creating a smart view

Available properties

Available actions

Working with records

Iterating over records

Accessing field values

Accessing belongsTo relationships

Accessing hasMany relationships

Refreshing records

Fetching records with custom filters

Query parameters

Deleting records

Triggering actions

Applying a smart view

Examples

Calendar view

Map view

Gallery view

Shipping status view

​What is a smart view?

​Creating a smart view

​Available properties

​Available actions

​Working with records

​Iterating over records

​Accessing field values

​Accessing belongsTo relationships

​Accessing hasMany relationships

​Refreshing records

​Fetching records with custom filters

​Query parameters

​Deleting records

​Triggering actions

​Applying a smart view

​Examples

​Calendar view

​Map view

​Gallery view

​Shipping status view

What is a smart view?

Creating a smart view

Available properties

Available actions

Working with records

Iterating over records

Accessing field values

Accessing belongsTo relationships

Accessing hasMany relationships

Refreshing records

Fetching records with custom filters

Query parameters

Deleting records

Triggering actions

Applying a smart view

Examples

Calendar view

Map view

Gallery view

Shipping status view
